Project: Pi Stats

Way back in 2018 I installed a Pi-hole to take control of my network in terms of the increasing amount of ads, trackers and more on every single service. This works by leveraging known lists of domains used for analytics, advertisements or malware and redirects them to nowhere (or basically blocks them).

I wanted long-term stats from the beginning, but I noticed pretty quickly in the early stages of this software that my database of historical records growing affected the system more than the benefit of keeping those analytics so I had to get creative with a solution - thus this project was built.

For those unaware Pi-hole leverages SQLite3 for both query and domain storage which means if I wanted to pull out historical records of DNS requests I'd need to query the database. Pi-hole did an excellent job of documenting all enums and structure of this database so even without AI being mainstream I could quickly write a query to get what I wanted.

So way back in 2018/2019 I had a simple query to obtain a subset (top 15) of domains.

SELECT DOMAIN, count(DOMAIN)
FROM queries
WHERE (STATUS == 2 OR STATUS == 3)
GROUP BY DOMAIN
ORDER BY count(DOMAIN) DESC
LIMIT 15

However, I just wanted to port all this data to a different database and store all queries instead of live querying the real database. This was because I learned I was losing data over a year old so I got to work on a little script to solve my problem. This bash script would:

• Find how many logged queries are in the database.
• Find the highest and lowest ID in the queries table.
• Obtain all the clients (devices).
• Find the last ID that was uploaded (or start fresh) at lowest.
• Grab 1,000 queries starting from the known ID and combine them with clients into JSON payload.
• Upload to server - record last ID if it was successful.

This led to some pretty ugly, but working code.

function getClientsJson {
    echo $(sqlite3 "/etc/pihole/pihole-FTL.db" "SELECT json_object('mac', hwaddr, 'first_seen', firstSeen, 'last_seen', lastQuery, 'name', macVendor) from network" | jq -s .)
}

function getQueries {
    echo $(sqlite3 "/etc/pihole/pihole-FTL.db" "SELECT json_object('id', queries.id, 'timestamp', queries.timestamp, 'type', queries.type, 'status', queries.status, 'domain', queries.domain, 'mac', network.hwaddr) FROM queries JOIN network_addresses ON queries.client = network_addresses.ip JOIN network ON network_addresses.network_id = network.id WHERE queries.id > $1 AND queries.domain != '' ORDER BY queries.id asc LIMIT 50" | jq -s .)
}

Now I had a valid JSON blob to collect and parse on a far more powerful server. I could take a snippet of the produced JSON and it would look like this.

{
  "version": 1,
  "min": 105005214,
  "max": 106527114,
  "last_id": 105005754,
  "queries": [
    {
      "id": 105005215,
      "timestamp": 1755254401.45808,
      "type": 1,
      "status": 2,
      "domain": "www.duckdns.org",
      "mac": "b8:27:eb:19:30:c4"
    }
  ],
  "clients": [
    {
      "mac": "94:65:2d:c5:eb:aa",
      "first_seen": 1558578874,
      "last_seen": 1673223134,
      "name": "OnePlus Technology (Shenzhen) Co., Ltd"
    }
  ]
}

This has been running for about 7 years now and working great, but has had some issues along the way. In no specific order this has broken for:

• Timestamps gaining the microseconds portion, thus breaking parser.
• Clients having no name.
• Client count increasing to over 1,000.
• New enums (type or status) being added.
• Clients having no date seen.

Generally what then happens is my monthly report that runs reports has the most recent query as a month ago. I have to determine if that is just a backlog of queries being processed or an actual ingestion bug. Those normally take some time with my schedule to dig into so while this may have been running for 7 years I probably have some gaps in the data.

Major Pi-hole upgrades have also damaged this process with either changing permissions on the database or changing the default length of storing queries. All to basically summarize with saying - this is not every single query my network has executed for 7 years, but instead I have 73~ million out of a known 100~ million requests.

So now I've gotten into a pattern of blogging yearly about the state of blocked/allowed domains on my network. I basically fire up an SSH connection and run "php artisan stats:dump" and go about my day. I haven't spent much time considering a faster implementation because I only run this command once a year. Once done it spits out everything I need for a blog.

$ php artisan stats:dump
Top 15 Allowed Domains
+--------------------------------------------+-----------+
| Domain                                     | Count     |
+--------------------------------------------+-----------+
| e7bf16b0-65ae-2f4e-0a6a-bcbe7b543c73.local | 5,631,937 |
| 68c40e5d-4310-def5-a1c3-20640e1cd583.local | 5,305,150 |
| 1d95ffae-4388-9fbc-1646-b2b637cecb64.local | 4,898,205 |
| localhost                                  | 4,461,024 |
| 1.1.1.1.in-addr.arpa                       | 2,019,619 |
| www.gstatic.com                            | 1,443,418 |
| ping2.ui.com                               | 1,422,805 |
| ping.ui.com                                | 1,389,558 |
| 806c4c48-1715-4220-054f-909f83563938.local | 1,342,386 |
| 8.8.8.8.in-addr.arpa                       | 1,186,953 |
| api-0.core.keybaseapi.com                  | 1,184,543 |
| b.canaryis.com                             | 1,125,173 |
| 168.192.in-addr.arpa                       | 1,057,459 |
| pistats.ibotpeaches.com                    | 1,050,674 |
| pool.ntp.org                               | 762,668   |
+--------------------------------------------+-----------+


Top 15 Blocked Domains
+--------------------------------------------+---------+
| Domain                                     | Count   |
+--------------------------------------------+---------+
| 806c4c48-1715-4220-054f-909f83563938.local | 803,900 |
| e7bf16b0-65ae-2f4e-0a6a-bcbe7b543c73.local | 638,460 |
| ssl.google-analytics.com                   | 508,524 |
| 1d95ffae-4388-9fbc-1646-b2b637cecb64.local | 432,008 |
| app-measurement.com                        | 391,038 |
| 68c40e5d-4310-def5-a1c3-20640e1cd583.local | 247,892 |
| watson.telemetry.microsoft.com             | 217,743 |
| logs.netflix.com                           | 187,798 |
| googleads.g.doubleclick.net                | 158,314 |
| androidtvchannels-pa.googleapis.com        | 153,954 |
| mobile.pipe.aria.microsoft.com             | 124,971 |
| flask.us.nextdoor.com                      | 113,808 |
| beacons.gcp.gvt2.com                       | 101,266 |
| sb.scorecardresearch.com                   | 99,971  |
| beacons.gvt2.com                           | 97,701  |
+--------------------------------------------+---------+

Total Queries: 72,899,802
First Query: 2019-06-17 01:55:35
Last Query: 2025-08-15 11:04:08
Time in days: 2251
Time taken: 55 minute(s).

From that output I can dive into analytics about blocked/accept domains and build out my yearly post. I started thinking that combining everything doesn't really lend itself to discovering new threats unless they are so heavy they outpace 7~ years of analytics. So I started building in a feature to take the results at a yearly basis since the introduction of the feature.

This led to a yearly snippet being posted in addition to the summary.

Year: 2020
Top 5 Allowed Domains
+--------------------------------------------+-----------+
| Domain                                     | Count     |
+--------------------------------------------+-----------+
| e7bf16b0-65ae-2f4e-0a6a-bcbe7b543c73.local | 1,955,478 |
| localhost                                  | 1,097,654 |
| 1d95ffae-4388-9fbc-1646-b2b637cecb64.local | 425,029   |
| b.canaryis.com                             | 336,553   |
| ssl.gstatic.com                            | 107,738   |
+--------------------------------------------+-----------+
Top 5 Blocked Domains
+--------------------------------------------+---------+
| Domain                                     | Count   |
+--------------------------------------------+---------+
| 806c4c48-1715-4220-054f-909f83563938.local | 395,395 |
| e7bf16b0-65ae-2f4e-0a6a-bcbe7b543c73.local | 365,206 |
| 1d95ffae-4388-9fbc-1646-b2b637cecb64.local | 197,003 |
| ssl.google-analytics.com                   | 167,389 |
| watson.telemetry.microsoft.com             | 82,205  |
+--------------------------------------------+---------+

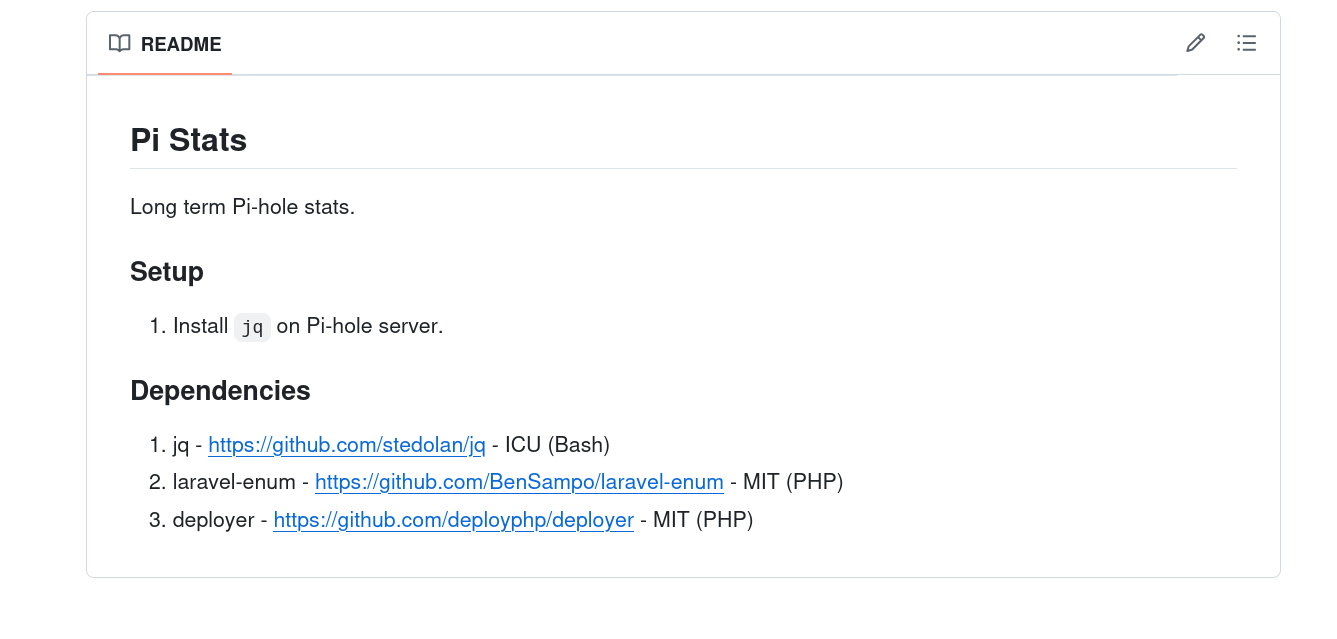

The year 8 blog about running this setup will be up in February in which I'll go into the details of what this new type of logging has added to my toolkit. Until then I'll figure out if I can clean up this repository to open source it.
